Single phase variable frequency drive VFR050
Power kW | 0.75 kW 1.5 kW 2.2 kW 4 kW 5.5 kW |
Combinations | Power kW | Reference | Stock | Price | Add to cart |
Power kW :
0.75 kW
Reference : VFR_050M2_0K75 Stock : 25 |
0.75 kW |
VFR_050M2_0K75 |
Available now Stock : 25 |
€205.04 Tax excl. |
|
Power kW :
1.5 kW
Reference : VFR_050M2_1K5 Stock : 39 |
1.5 kW |
VFR_050M2_1K5 |
Available now Stock : 39 |
€224.33 Tax excl. |
|
Power kW :
2.2 kW
Reference : VFR_050M2_2K2 Stock : 60 |
2.2 kW |
VFR_050M2_2K2 |
Available now Stock : 60 |
€280.49 Tax excl. |
|
Power kW :
4 kW
Reference : VFR_050M2_4K0 Stock : 40 |
4 kW |
VFR_050M2_4K0 |
Available now Stock : 40 |
€356.33 Tax excl. |
|
Power kW :
5.5 kW
Reference : VFR_050M2_5K5 Stock : 25 |
5.5 kW |
VFR_050M2_5K5 |
Available now Stock : 25 |
€604.97 Tax excl. |
|

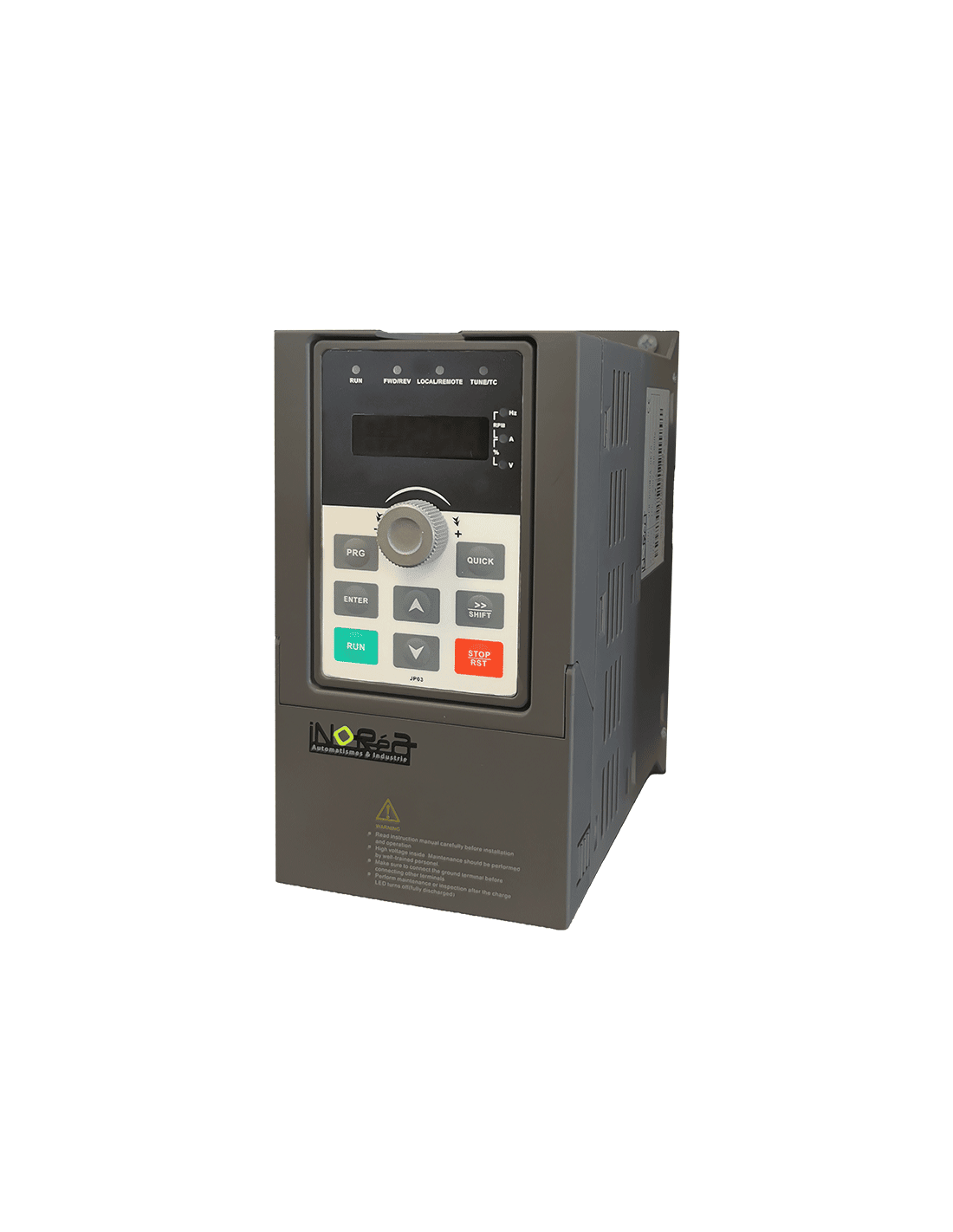

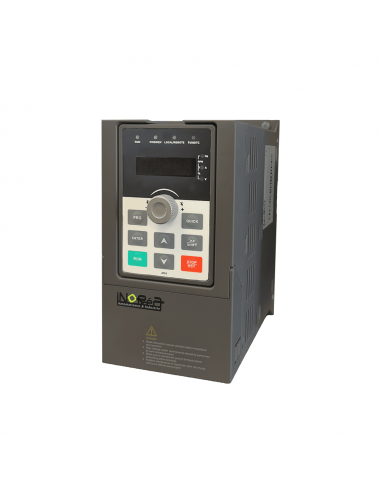

Variable frequency drive single/three phase: VFR050
• Adjustable Output Frequency (0 - 320Hz) with potentiometer on front panel
• 6 Digital Inputs (FWD/REV/Multispeed...), 2 Analogue Inputs (0-10V or 4-20mA)
• 3 Digital Outputs (1 relay, 2 transistors), 2 Analogue Outputs (0-10V or 4-20mA)
• Breaking Unit (to stop higher inertia loads)
• PID Function (7 segments loop)
Reference | Voltage | Power | In | Dim.(mm) - Weight |
VFR_050M2_0K75 | 220V | 0.75kW - 1HP | 4A | 185/120/178.5; - 3kg |
VFR_050M2_1K5 | 220V | 1.5kW - 2HP | 7A | 185/120/178.5 - 3kg |
VFR_050M2_2K2 | 220V | 2.2kW - 3HP | 10A | 220/150/185.5 - 3kg |
VFR_050M2_4K0 | 220V | 4kW - 5.5HP | 16A | 285/180/200 - 4kg |
VFR_050M2_5K5 | 220V | 5.5kW - 7.5HP | 25A | 360/220/210 - 3kg |
Complete instruction | Wiring diagram | Control by external buttons |
Multi speed control | Analogue instructions | Applications |
CE Certificate | ||
-
