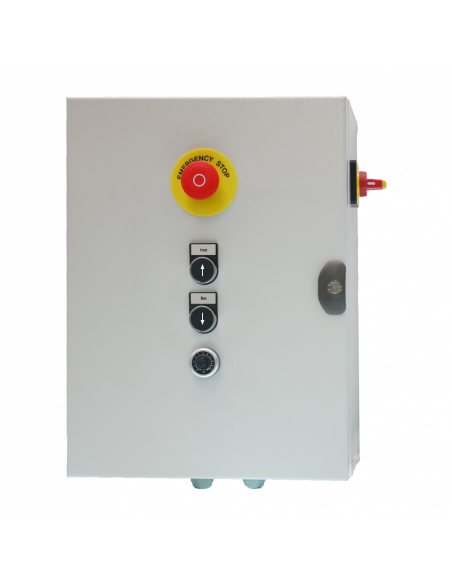

Three-phase variable frequency drive enclosure UP/DOWN - Plastic or metal
Suited for a VFR050 VFD, this enclosure is made for three-phase motors with a three-phase 380V power supply. The VFD is mounted in an IP55 enclosure.
VFRIP5_HB applications: Double column lift, sectional door, hoist/winch...
Features:
- Lateral isolating switch
- Emergency stop
- Potentiometer for adjusting the speed
- Magnetothermal protection (circuit breaker size adapted to the VFD)
- 2 arrow butttons (Up/down)
- Stop button
Characteristics:
- Voltage: Three-phase 400V (±10%)
- Input frequency: 50 - 60 Hz
- Connection: Supply terminal block
- Protection: IP55
- Operating temperature: -5°C to +40°C
- Dimensions in cm:
Plastic: 50*40*24
Metal: 50*35*30
| Reference | |||||
|---|---|---|---|---|---|
| Plastic | Metal | Voltage | Power (kW) |
Input current (A) |
Output current (A) |
| VFRIP5T4_HBP_0K75 | VFRIP5T4_HBM_0K75 | Three/Three 400V | 0.75 |
4.3 | 2.5 |
| VFRIP5T4_HBP_1K5 | VFRIP5T4_HBM _1K5 | Three/Three 400V | 1.5 | 5 | 3.8 |
| VFRIP5T4_HBP_2K2 | VFRIP5T4_HBM _2K2 | Three/Three 400V | 2.2 | 5.8 | 5.1 |
| VFRIP5T4_HBP_4K0 | VFRIP5T4_HBM _4K0 | Three/Three 400V | 4 | 10.5 | 9 |
| VFRIP5T4_HBP_5K5 | VFRIP5T4_HBM _5K5 | Three/Three 400V | 5.5 | 14.6 | 13 |
| VFRIP5T4_HBP_7K5 | VFRIP5T4_HBM _7K5 | Three/Three 400V | 7.5 |
20.5 | 17 |
