Wireless single-phase frequency inverter enclosure simple/single drive/control on plastic or metal
| Select your power | 0.75 kW 1.5 kW 2.2 kW 4 kW 5.5 kW |
| Matière | Plastique Métal |
| Combinations | Select your power | Matière | Reference | Stock | Price | Add to cart |
|
Select your power :
0.75 kW
Reference : VFRIP5M2_EMP_0K75
|
0.75 kW |
Plastique |
VFRIP5M2_EMP_0K75 |
Available now Stock : 1 |
€514.44 Tax excl. |
|
|
Select your power :
0.75 kW
Reference : VFRIP5M2_EMM_0K75
|
0.75 kW |
Métal |
VFRIP5M2_EMM_0K75 |
Available now Stock : 1 |
€585.71 Tax excl. |
|
|
Select your power :
1.5 kW
Reference : VFRIP5M2_EMP_1K5
|
1.5 kW |
Plastique |
VFRIP5M2_EMP_1K5 |
Available now Stock : 1 |
€543.74 Tax excl. |
|
|
Select your power :
1.5 kW
Reference : VFRIP5M2_EMM_1K5
|
1.5 kW |
Métal |
VFRIP5M2_EMM_1K5 |
Available now Stock : 1 |
€615.01 Tax excl. |
|
|
Select your power :
2.2 kW
Reference : VFRIP5M2_EMP_2K2
|
2.2 kW |
Plastique |
VFRIP5M2_EMP_2K2 |
Available now Stock : 1 |
€600.60 Tax excl. |
|
|
Select your power :
2.2 kW
Reference : VFRIP5M2_EMM_2K2
|
2.2 kW |
Métal |
VFRIP5M2_EMM_2K2 |
Available now Stock : 1 |
€671.87 Tax excl. |
|
|
Select your power :
4 kW
Reference : VFRIP5M2_EMP_4K0
|
4 kW |
Plastique |
VFRIP5M2_EMP_4K0 |
Available now Stock : 1 |
€678.49 Tax excl. |
|
|
Select your power :
4 kW
Reference : VFRIP5M2_EMM_4K0
|
4 kW |
Métal |
VFRIP5M2_EMM_4K0 |
Available now Stock : 1 |
€749.76 Tax excl. |
|
|
Select your power :
5.5 kW
Reference : VFRIP5M2_EMP_5K5
|
5.5 kW |
Plastique |
VFRIP5M2_EMP_5K5 |
Available now Stock : 1 |
€940.23 Tax excl. |
|
|
Select your power :
5.5 kW
Reference : VFRIP5M2_EMM_5K5
|
5.5 kW |
Métal |
VFRIP5M2_EMM_5K5 |
Available now Stock : 1 |
€1,011.50 Tax excl. |
|

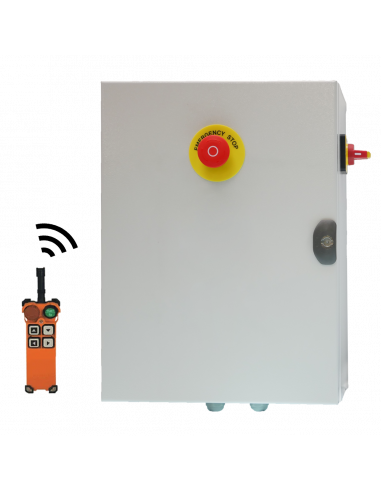

Single-phase inverter encolusre wireless drive/control - Plastic or metal
Suited/designed for a VFR050 inverter, this enclosure is suitable for three-phase (220/380V) motors with a single-phase 220V power supply. The inverter is mounted/The enclosure has/benefit from the IP55 protection/The enclosure's protection grade is IP55. The inverter is set/installed in an IP55 enclosure/cabinet.
VFRIP5_EM application: Remote control/drive motor (without being next/close/besides the cabinet/enclosure): pump, conveyors, fan, ...
Equipments/Accessories/Includes:
- Lateral circuit breaker
- Emergency stop
- Magnetothermal protection (cricuit breaker designed/suited for the frequency drive/inverter)
- Receiver for the remote control
- 2 modes: either Way 1 Way 2 and more or less fast/with several/different speed, or only 1 rotation/direction way and 3 prerecorded/preset/predetermined speed
- 2 command modes:
- 2 rotation/direction ways and pulse speed deviation with pulse. Can remotely start a frequency inverter in the two ways and set/adjust the speed with pulse/pulse adjust the speed/ Enables the frequency inverter to be started/turned on remotely in the two ways and the speed to be adjusted with pulse.
- 1 rotation/direction way and et 3 prerecorded/preset/predetermined speed. Enables the frequency inverter to be started in one way and to be driven/controlled with 3 set speed.
Characteristics:
- Power supply: Three-phase 230V (±10%)
- (input) Frequency (supply): 50 - 60 Hz
- Connection: Power (supply) terminal block
- Protection: IP55
- Operating temperature: -5°C to +40°C
| Reference | |||||
|---|---|---|---|---|---|
| Plastic | Metal | Voltage | Power (kW) |
(Energy) Consumption | Output current |
| VFRIP5M2_EMP_0K75 | VFRIP5M2_EMM_0K75 | Single/Three 230V | 0.75 |
8.2 | 4 |
| VFRIP5M2_EMP_1K5 | VFRIP5M2_EMM _1K5 | Single/Three 230V | 1.5 | 14 | 16 |
| VFRIP5M2_EMP_2K2 | VFRIP5M2_EMM _2K2 | Single/Three 230V | 2.2 | 29 | 10 |
| VFRIP5M2_EMP_4K0 | VFRIP5M2_EMM _4K0 | Single/Three 230V | 4 | 35 | 16 |
| VFRIP5M2_EMP_5K5 | VFRIP5M2_EMM _5K5 | Single/Three 230V | 5.5 | 50 | 25 |
Documentation VFRIP5M2_EM_XX
Documentation frequency inverter VFR050
Remote/external /outside driving/controlling buttons
