Three-phase variable frequency enclosure terminal block control plastic or metal
 |
Quantity discounts on the category 2.4 IP55 cabinet for VFD |
✔ Between 3 and 4 lots purchased: 5% discount
✔ 5 lots and more purchased: 10% discount
☞ You want to become a distributor of our brand?
✉ Contact us for more customised discounts

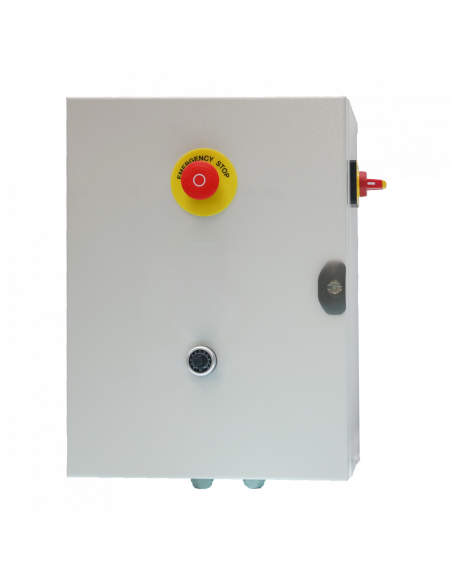

Three-phase variable frequency drive enclosure terminal block control - Plastic or metal
Enclosure IP 55 made for a VFR050 VFD, for controlling a three-phase asynchronous motor in three-phase 380V with a three-phase 380V power supply.
The VFRIP_X is suitable for controlling a motor via external commands like a remote TEL_VAR_BG3 , a PLC or external buttons.
Features:
- Lateral isolating switch
- Emergency stop
- Magnetothermal protection (circuit breaker size adaptated to VFD)
Characteristics:
- Voltage: Three-phase 400V (±10%)
- Input frequency: 50 - 60 Hz
- Connection: Supply terminal block
- Protection: IP55
- Operating temperature: -5°C to +40°C
- Dimensions in cm:
Plastic: 50*40*24
Metal: 50*35*30
| Reference | |||||
|---|---|---|---|---|---|
| Plastic | Metal | Voltage | Power (kW) |
Input current (A) |
Output current (A) |
| VFRIP5T4_XP_0K75 | VFRIP5T4_XM_0K75 | Three/Three 400V | 0.75 |
4.3 | 2.5 |
| VFRIP5T4_XP_1K5 | VFRIP5T4_XM _1K5 | Three/Three 400V | 1.5 | 5 | 3.8 |
| VFRIP5T4_XP_2K2 | VFRIP5T4_XM _2K2 | Three/Three 400V | 2.2 | 5.8 | 5.1 |
| VFRIP5T4_XP_4K0 | VFRIP5T4_XM _4K0 | Three/Three 400V | 4 | 10.5 | 9 |
| VFRIP5T4_XP_5K5 | VFRIP5T4_XM _5K5 | Three/Three 400V | 5.5 | 14.6 | 13 |
| VFRIP5T4_XP_7K5 | VFRIP5T4_XM _7K5 | Three/Three 400V | 7.5 |
20.5 | 17 |
Documentation VFRIP5T4_X_XX
Documentation VFD VFR050
