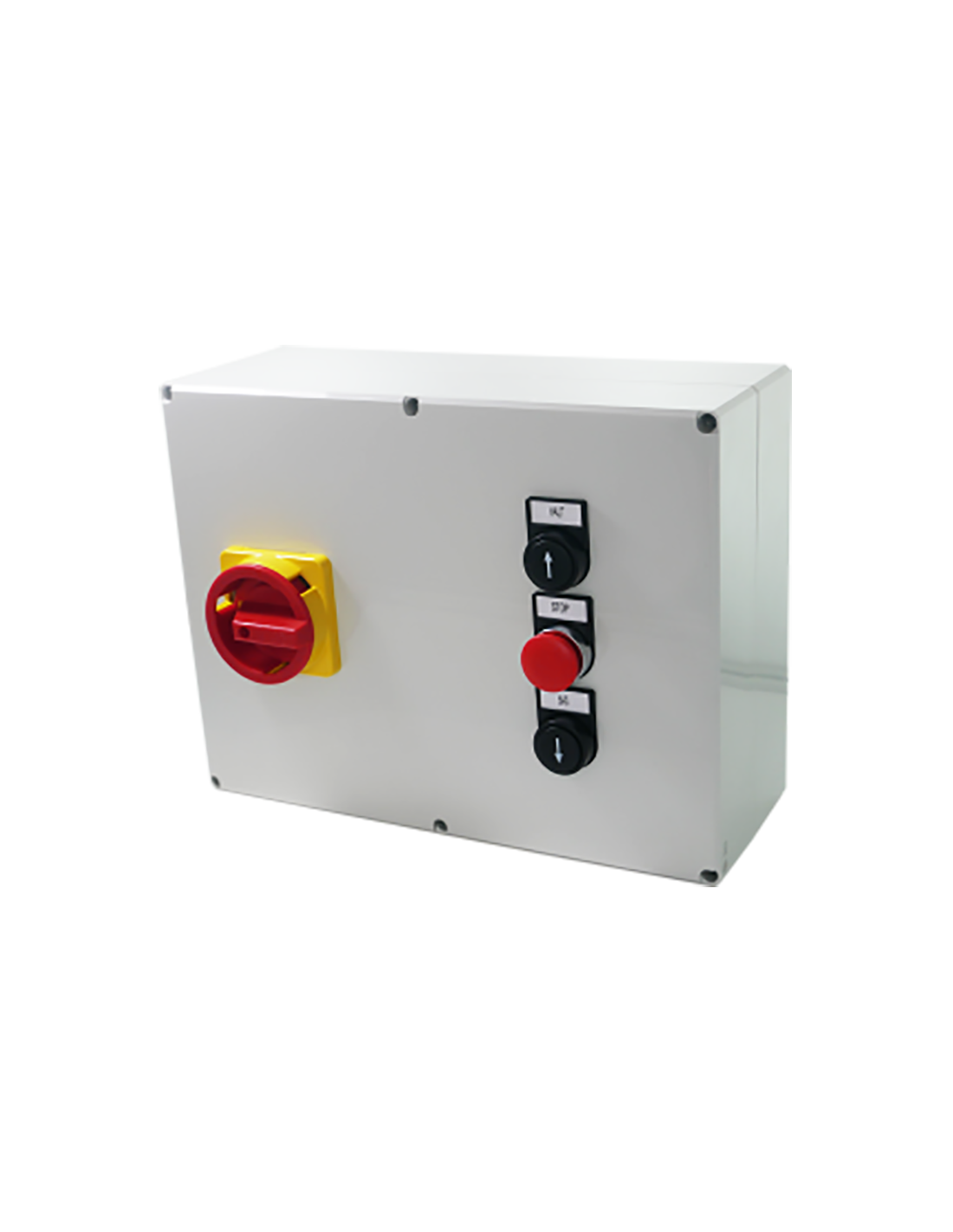

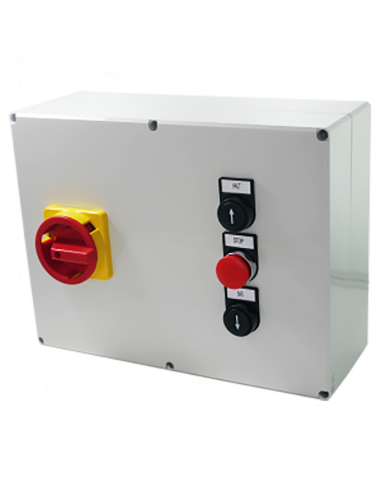

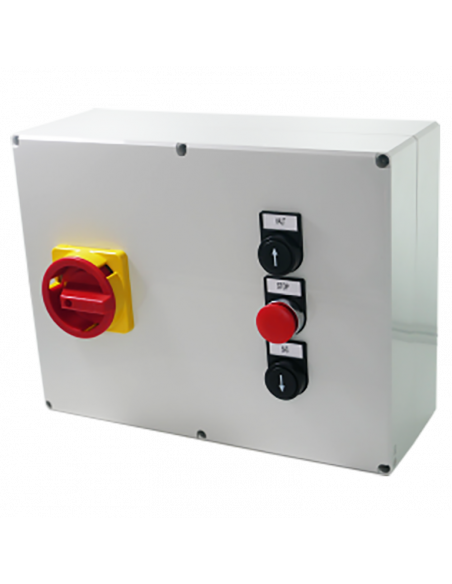

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Quote request

€270.24 Tax excl.
Pourcentage.png Quantity discounts on the category 3.1 Motor starter box



✔ Between 5 and 9 products purchased: 10% discount

✔ 10 products and more purchased: 15% discount


Want to become a distributor of our brand?
 Contact us for more customised discounts

Power kW
Current range (A)

Power kW 7.5 W
Current range (A) 0.6 to 0.9 0.8 to 1.2 1.2 to1.8 1.8 to 2.7 2.7 to 4 4 to 6 6 to 9 8 to 11 10 to 14
Combinations Power kW Current range (A) Reference Stock Price Add to cart

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Power kW : 7.5 W
Current range (A) : 0.6 to 0.9

Reference : BDM_HBSP_7K5_400_009

Stock : 0

7.5 W

0.6 to 0.9

BDM_HBSP_7K5_400_009

Available later

€270.24 Tax excl.


€270.24 Tax excl.

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Power kW : 7.5 W
Current range (A) : 0.8 to 1.2

Reference : BDM_HBSP_7K5_400_012

Stock : 0

7.5 W

0.8 to 1.2

BDM_HBSP_7K5_400_012

Available later

€268.12 Tax excl.


€268.12 Tax excl.

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Power kW : 7.5 W
Current range (A) : 1.2 to1.8

Reference : BDM_HBSP_7K5_400_018

Stock : 0

7.5 W

1.2 to1.8

BDM_HBSP_7K5_400_018

Available later

€268.18 Tax excl.


€268.18 Tax excl.

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Power kW : 7.5 W
Current range (A) : 1.8 to 2.7

Reference : BDM_HBSP_7K5_400_027

Stock : 0

7.5 W

1.8 to 2.7

BDM_HBSP_7K5_400_027

Available later

€267.98 Tax excl.


€267.98 Tax excl.

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Power kW : 7.5 W
Current range (A) : 2.7 to 4

Reference : BDM_HBSP_7K5_400_040

Stock : 0

7.5 W

2.7 to 4

BDM_HBSP_7K5_400_040

Available later

€268.18 Tax excl.


€268.18 Tax excl.

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Power kW : 7.5 W
Current range (A) : 4 to 6

Reference : BDM_HBSP_7K5_400_060

Stock : 0

7.5 W

4 to 6

BDM_HBSP_7K5_400_060

Available later

€276.84 Tax excl.


€276.84 Tax excl.

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Power kW : 7.5 W
Current range (A) : 6 to 9

Reference : BDM_HBSP_7K5_400_090

Stock : 0

7.5 W

6 to 9

BDM_HBSP_7K5_400_090

Available later

€269.00 Tax excl.


€269.00 Tax excl.

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Power kW : 7.5 W
Current range (A) : 8 to 11

Reference : BDM_HBSP_7K5_400_110

Stock : 0

7.5 W

8 to 11

BDM_HBSP_7K5_400_110

Available later

€277.48 Tax excl.


€277.48 Tax excl.

Up and down, control 400V up to 7.5kW with end position

Up and down, control 400V up to 7.5kW with end position

Power kW : 7.5 W
Current range (A) : 10 to 14

Reference : BDM_HBSP_7K5_400_140

Stock : 0

7.5 W

10 to 14

BDM_HBSP_7K5_400_140

Available later

€272.88 Tax excl.


€272.88 Tax excl.

Motor starter box sold with adapted thermal relay.

Characteristics:

Power: 7.5kW/18A 15kW/32A
Drive: 400V Three-phase motor connection
Size: 230x300x111
Protection: IP55
Type: Up/Down




ReferencePower (kW)Intensity range (A)Maximal intensity (A)
BDM_HBSP_7K5_400_009 7.5 0.6 to 0.9 0.9
BDM_HBSP_7K5_400_012 7.5 0.8 to 1.2 1.2
BDM_HBSP_7K5_400_018 7.5 1.2 to 1.8 1.8
BDM_HBSP_7K5_400_027 7.5 1.8 to 2.7 2.7
BDM_HBSP_7K5_400_040 7.5 2.7 to 4 4
BDM_HBSP_7K5_400_060 7.5 4 to 6 6
BDM_HBSP_7K5_400_090 7.5 6 to 9 9
BDM_HBSP_7K5_400_110 7.5 8 to 11 11
BDM_HBSP_7K5_400_140 7.5 10 to 14 14



Documentation Wiring diagram
