Soft starter 400V, 3 phases
Power kW | 15 kW 22 kW 30 kW 37 kW 45 kW 55 kW 75 kW 90 kW 110 kW 160 kW 200 kW 250 kW |
Combinations | Power kW | Reference | Stock | Price | Add to cart |
Power kW :
15 kW
Reference : SSTR15K Stock : 1 |
15 kW |
SSTR15K |
Available now Stock : 1 |
€340.42 Tax excl. |
|
Power kW :
22 kW
Reference : SSTR22K Stock : 0 |
22 kW |
SSTR22K |
Available later |
€361.30 Tax excl. |
|
Power kW :
30 kW
Reference : SSTR30K Stock : 2 |
30 kW |
SSTR30K |
Available now Stock : 2 |
€371.09 Tax excl. |
|
Power kW :
37 kW
Reference : SSTR37K Stock : 1 |
37 kW |
SSTR37K |
Available now Stock : 1 |
€371.91 Tax excl. |
|
Power kW :
45 kW
Reference : SSTR45K Stock : 1 |
45 kW |
SSTR45K |
Available now Stock : 1 |
€486.26 Tax excl. |
|
Power kW :
55 kW
Reference : SSTR55K Stock : 0 |
55 kW |
SSTR55K |
Available later |
€554.28 Tax excl. |
|
Power kW :
75 kW
Reference : SSTR75K Stock : 1 |
75 kW |
SSTR75K |
Available now Stock : 1 |
€672.71 Tax excl. |
|
Power kW :
90 kW
Reference : SSTR90K Stock : 0 |
90 kW |
SSTR90K |
Available later |
€751.44 Tax excl. |
|
Power kW :
110 kW
Reference : SSTR110K Stock : 0 |
110 kW |
SSTR110K |
Available later |
€1,515.03 Tax excl. |
|
Power kW :
160 kW
Reference : SSTR160K Stock : 0 |
160 kW |
SSTR160K |
Available later |
€1,781.01 Tax excl. |
|
Power kW :
200 kW
Reference : SSTR200K Stock : 0 |
200 kW |
SSTR200K |
Available later |
€2,066.54 Tax excl. |
|
Power kW :
250 kW
Reference : SSTR250K Stock : 0 |
250 kW |
SSTR250K |
Available later |
€2,626.61 Tax excl. |
|

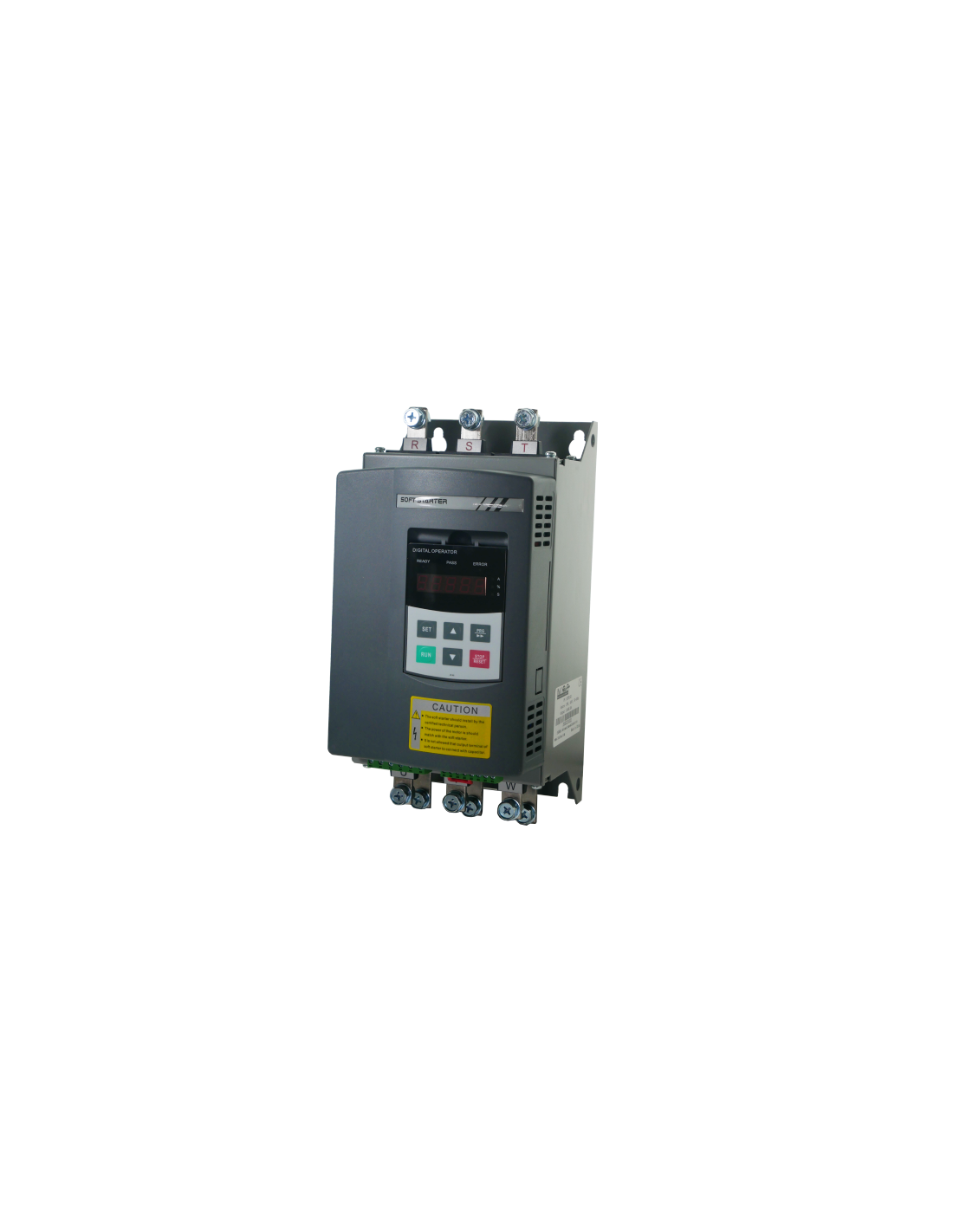

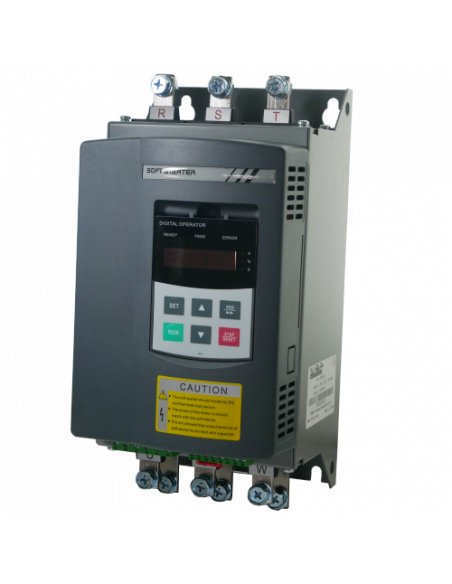

Soft starter 400V - 3 phases - 15 to 250W
Technical data:
-Nominal working voltage: 400VAC, 50Hz
-Permissible voltage difference: + or - 10%
-Phase unbalance: <3%
-Oscillation frequency: <5%
Features available:
-Protection against motor overloads, protection against phase failure, integrated thermal protection
-Default output, motor diagnosis and keypad or terminal block control
-Defaults memory and setting of curve I depending on the application
Soft starters enable to cancel inrush currents when starting the motor (6In), without using star-delta start, an autotransformer or resistance at start.
Soft starters manage also the rotation direction of the motor and stop phases.
Once the starting phase is over (steady state), the starter is "shunted" by a shunt contactor.
Parameters table
Reference | Motor power (kW) | Ampere (A) | Conductor cross-section (mm²) | Ampere contactor | Protection | Size LxHxD |
SSTR15K | 15 | 28 | 10 | 32 | 63/40 | T1 |
SSTR22K | 22 | 42 | 16 | 50 | 63/63 | T1 |
SSTR30K | 30 | 54 | 25 | 62 | 100/80 | T1 |
SSTR37K | 37 | 68 | 35 | 74 | 100/100 | T1 |
SSTR45K | 45 | 88 | 35 | 90 | 125/125 | T1 |
SSTR55K | 55 | 98 | 35 | 115 | 160/160 | T1 |
SSTR75K | 75 | 128 | 50 | 150 | 225/180 | T1 |
SSTR90K | 90 | 160 | 30x3 | 180 | 225/225 | T2 |
SSTR110K | 110 | 190 | 30x3 | 225 | 225/315 | T2 |
SSTR160K | 160 | 290 | 30x5 | 320 | 400/350 | T2 |
SSTR200K | 200 | 367 | 30x5 | 400 | 400/500 | T2 |
SSTR250K | 250 | 430 | 40x5 | 500 | 630/630 | T3 |
Diagram Soft Starter |
Wiring diagram |
