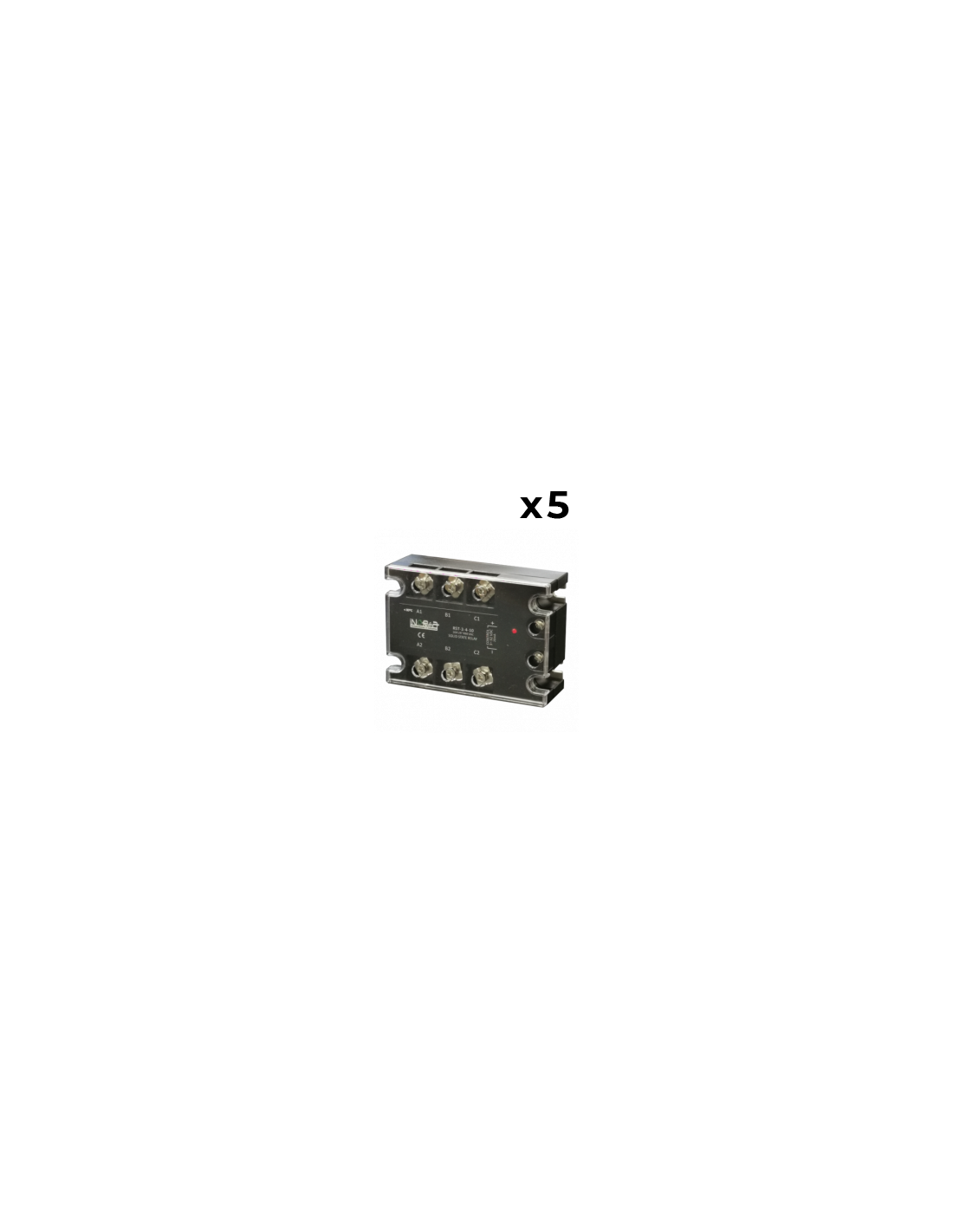

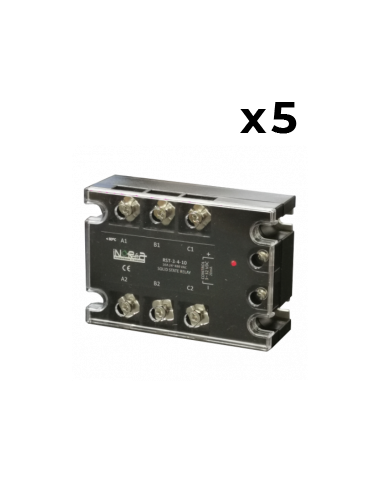

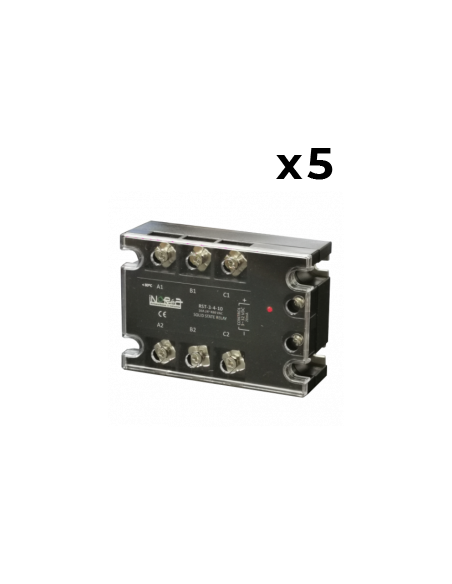

Three phase solid state relay

Reference RST_3_4_10_5

131,75 tax excl.

€158.10 TTC

Three phase solid state relay, from 10 to 60 A.

Sold only by batches of 5 items.

Sélectionnez votre lot

Description

The solid state relay performs as a contactor : a voltage application (between 2 and 32 VDC) on the control drives the transistor functional and powers the electrical charge.

Technical features

CMOS technology
Top protection in plastic
Isolation voltage: 1000 MΩ /min (500V)
Stability of pulse voltage: 2000V, 50Hz
Diélectric rigidity 2500VAC /1 min
Leakage current <2mA
Switching time <10ms
Operating temperature: -5°С to + 65°С, relative humidty: 35 - 85% RH

Radiator sizing is critical for the lifespan of the component. The power to be dispersed is given by the following formula:

Effective current of the electrical charge(A) x 3.0 W/A.

Warning:

The solid state relay must be protected against output high voltage by a varistor, especially during the use of an inductive charge.

References	Control voltage	Output voltage	Maximum output amps
RST_3_4_10_5	2-32VDC	480VAC	10 A
RST_3_4_20_5	2-32VDC	480VAC	20 A
RST_3_4_40_5	2-32VDC	480VAC	40 A
RST_3_4_60_5	2-32VDC	480VAC	60 A

Technical documentation
