Three-phase variable frequency drive enclosure remote control plastic or metal
 |
Quantity discounts on the category 2.4 IP55 cabinet for VFD |
✔ Between 3 and 4 lots purchased: 5% discount
✔ 5 lots and more purchased: 10% discount
☞ You want to become a distributor of our brand?
✉ Contact us for more customised discounts

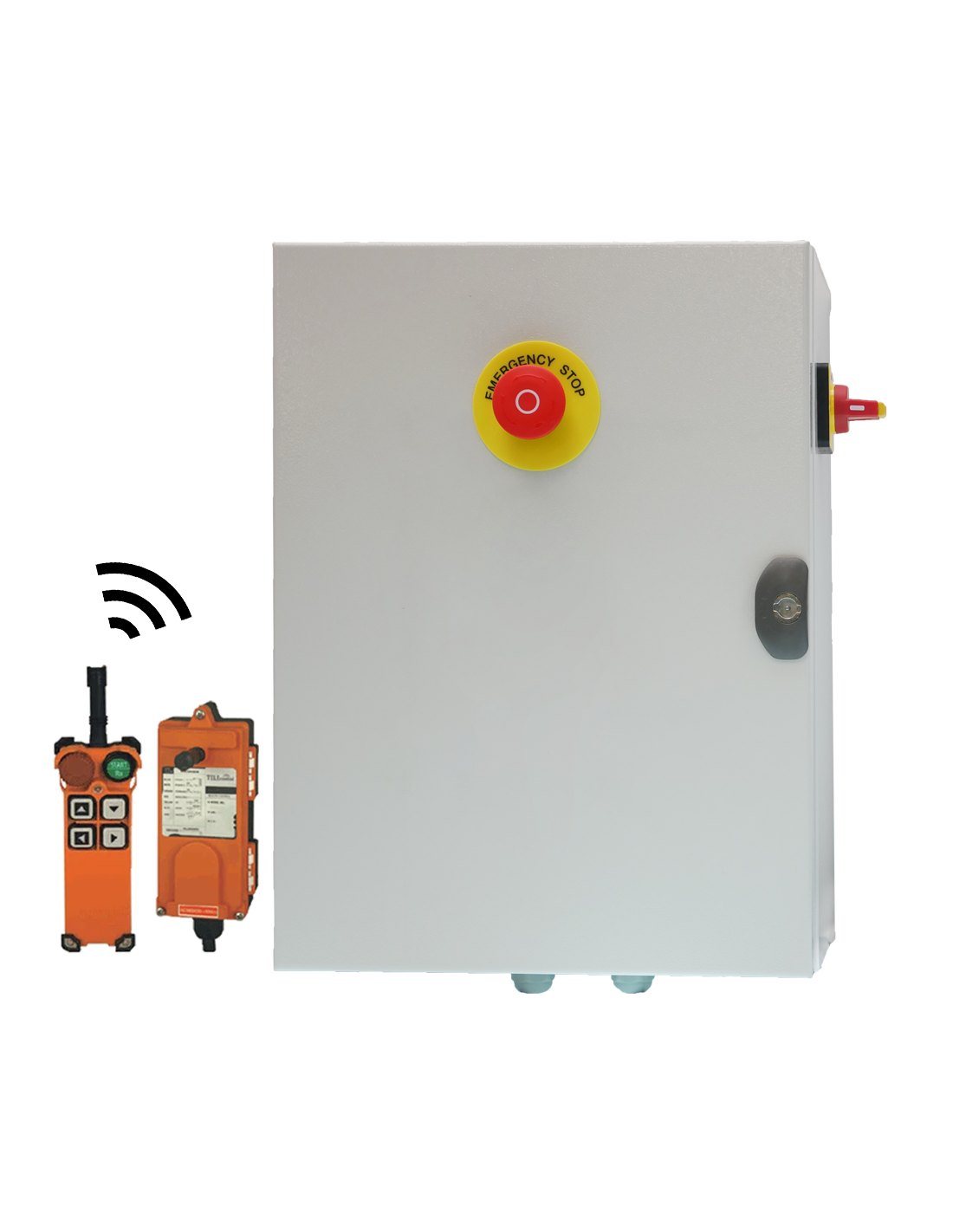

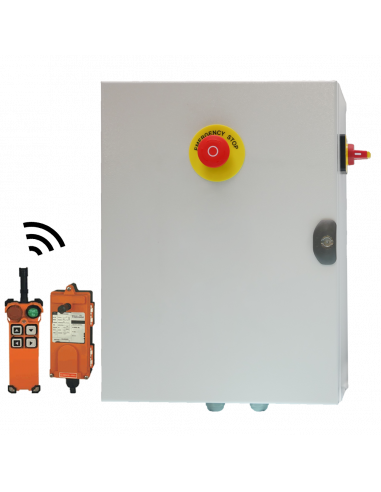

Three-phase variable variable frequency drive enclosure remote control - Plastic or metal
Suited for a VFR050 VFD, this enclosure is made for three-phase motors with a three-phase 380V power supply. The VFD is mounted in an IP55 enclosure.
VFRIP5_EM application: Motor remote control (no need to be close to the enclosure): pump, conveyors, ventilation, ...
Features:
- Lateral isolating switch
- Emergency stop
- Magnetothermal protection (circuit breaker size adapted to the VFD)
- Receiver for the remote control
- 2 modes: either Way 1 Way 2 accelerate or decelerate, or only 1 rotation direction and 3 preset speeds
- 2 command modes:
- 2 rotation directions and variable speed with pulse. Enables the VFD to be started remotely in the two ways and the speed to be adjusted with pulse.
- 1 rotation direction and 3 preset speeds. Enables the VFD to be started in one way and to be driven with 3 set speeds.
Characteristics:
- Voltage: Three-phase 400V (±10%)
- Input frequency: 50 - 60 Hz
- Connection: Supply terminal block
- Protection: IP55
- Operating temperature: -5°C to +40°C
- Dimensions in cm:
Plastic: 50*40*24
Metal: 50*35*30
| Reference | |||||
|---|---|---|---|---|---|
| Plastic | Metal | Voltage | Power (kW) |
Input current (A) |
Output current (A) |
| VFRIP5T4_EMP_0K75 | VFRIP5T4_EMM_0K75 | Three/Three 400V | 0.75 |
4.3 | 2.5 |
| VFRIP5T4_EMP_1K5 | VFRIP5T4_EMM _1K5 | Three/Three 400V | 1.5 | 5 | 3.8 |
| VFRIP5T4_EMP_2K2 | VFRIP5T4_EMM _2K2 | Three/Three 400V | 2.2 | 5.8 | 5.1 |
| VFRIP5T4_EMP_4K0 | VFRIP5T4_EMM _4K0 | Three/Three 400V | 4 | 10.5 | 9 |
| VFRIP5T4_EMP_5K5 | VFRIP5T4_EMM _5K5 | Three/Three 400V | 5.5 | 14.6 | 13 |
| VFRIP5T4_EMP_7K5 | VFRIP5T4_EMM _7K5 | Three/Three 400V | 7.5 |
20.5 | 17 |
Documentation VFRIP5M2_EM_XX
PDF Document
