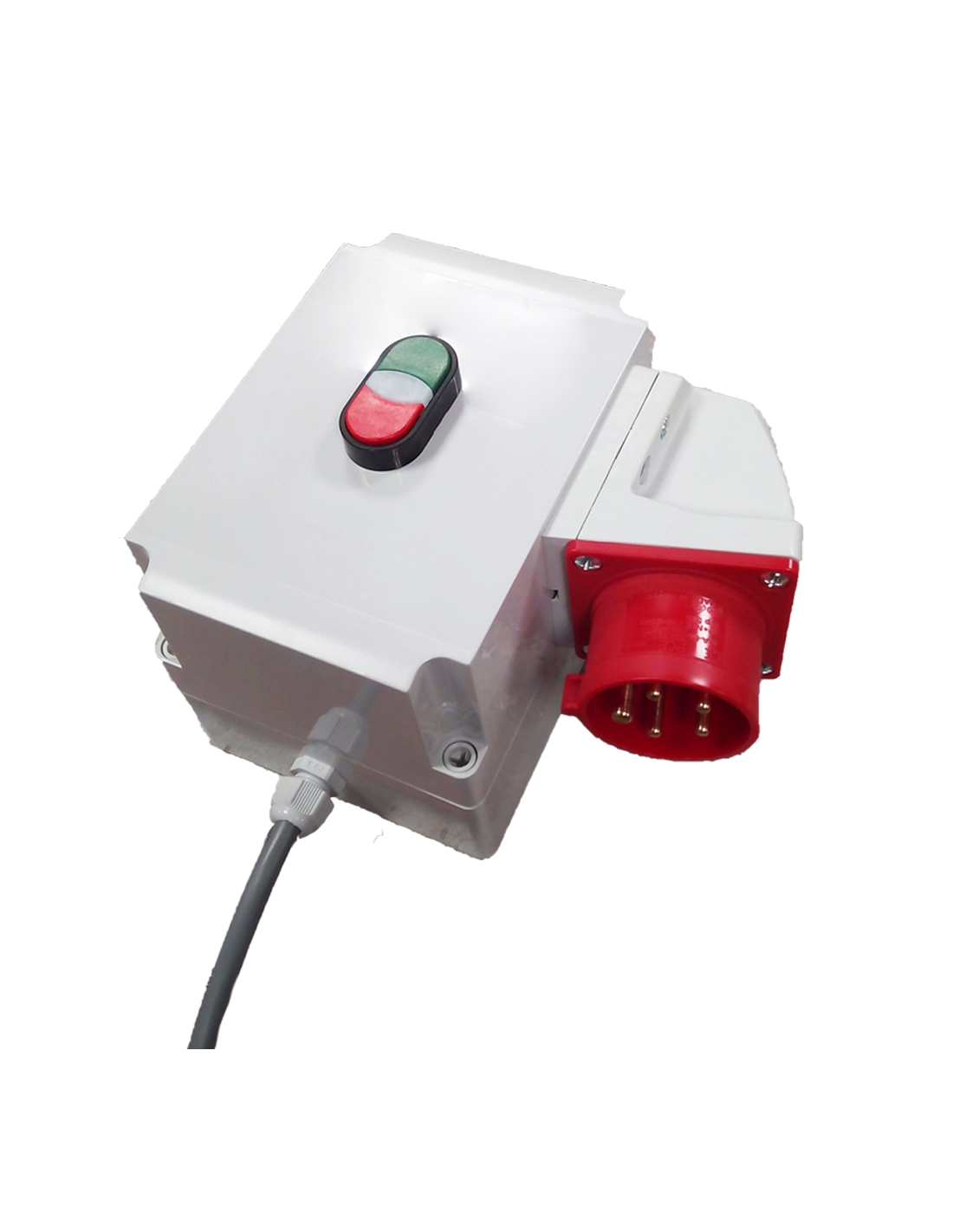

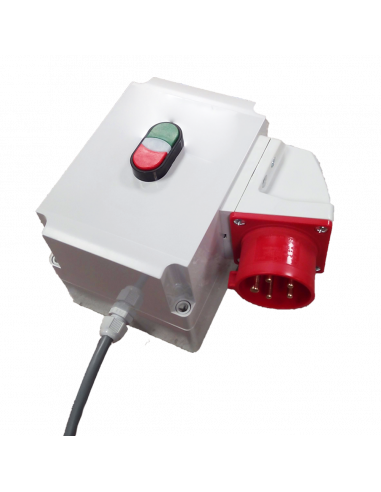

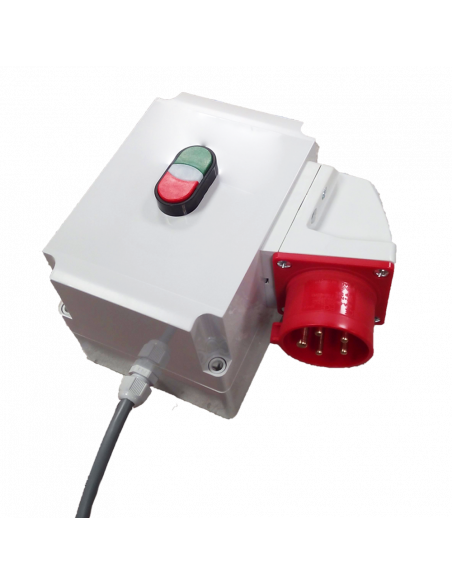

Motor starter box ON/OFF with plug 16A

€155.27 Tax excl.

Quote request

Quantity discounts on the category 3.1 Motor starter box

✔ Between 3 and 4 products purchased: 5% discount

✔ Between 5 and 9 products purchased: 10% discount

✔ 10 products and more purchased: 15% discount

☞ Want to become a distributor of our brand?
✉ Contact us for more customised discounts

Current range (A)

0.6 to 0.9 0.8 to 1.2 1.2 to1.8 1.8 to 2.7 2.7 to 4 4 to 6 6 to 9 8 to 11 10 to 14

Combinations	Current range (A)	Reference	Stock	Price	Add to cart
Current range (A) : 0.6 to 0.9 Reference : BDM_3PTN_400_009 Stock : 0	0.6 to 0.9	BDM_3PTN_400_009	Available later	€155.27 HT	€155.27 HT
Current range (A) : 0.8 to 1.2 Reference : BDM_3PTN_400_012 Stock : 0	0.8 to 1.2	BDM_3PTN_400_012	Available later	€152.84 HT	€152.84 HT
Current range (A) : 1.2 to1.8 Reference : BDM_3PTN_400_018 Stock : 0	1.2 to1.8	BDM_3PTN_400_018	Available later	€164.66 HT	€164.66 HT
Current range (A) : 1.8 to 2.7 Reference : BDM_3PTN_400_027 Stock : 0	1.8 to 2.7	BDM_3PTN_400_027	Available later	€152.67 HT	€152.67 HT
Current range (A) : 2.7 to 4 Reference : BDM_3PTN_400_040 Stock : 0	2.7 to 4	BDM_3PTN_400_040	Available later	€163.78 HT	€163.78 HT
Current range (A) : 4 to 6 Reference : BDM_3PTN_400_060 Stock : 0	4 to 6	BDM_3PTN_400_060	Available later	€163.88 HT	€163.88 HT
Current range (A) : 6 to 9 Reference : BDM_3PTN_400_090 Stock : 0	6 to 9	BDM_3PTN_400_090	Available later	€164.24 HT	€164.24 HT
Current range (A) : 8 to 11 Reference : BDM_3PTN_400_110 Stock : 0	8 to 11	BDM_3PTN_400_110	Available later	€166.80 HT	€166.80 HT
Current range (A) : 10 to 14 Reference : BDM_3PTN_400_140 Stock : 0	10 to 14	BDM_3PTN_400_140	Available later	€158.31 HT	€158.31 HT

Description

Direct start, command 400V

Motor starter box ON OFF with thermal protection

Characteristics:

- Current: from 0.6 to 14A depending on the model

- Command: 400V

- 380V Three-phase motor connection

- Protection: IP55

- Type: ON/OFF

- 1 metre cable (4G 1.5mm²) outside the box

- Plug for power supply 3P+N+E 16A IP44

- Motor starter box sold with corresponding mounted thermal relay

This box enables a three-phase motor to be directly started by connecting an extension cable to the box plug and to connect the motor with the electric cable.

Reference	Current range (A)	Maximum current (A)
BDM_3PTN_400_009	0.6 to 0.9	0.9
BDM_3PTN_400_012	0.8 to 1.2	1.2
BDM_3PTN_400_018	1.2 to 1.8	1.8
BDM_3PTN_400_027	1.8 to 2.7	2.7
BDM_3PTN_400_040	2.7 to 4	4
BDM_3PTN_400_060	4 to 6	6
BDM_3PTN_400_090	6 to 9	9
BDM_3PTN_400_110	8 to 11	11
BDM_3PTN_400_140	10 to 14	14
