Three-phase dimmer
| Rated current | 25A 60A |
| Combinations | Rated current | Reference | Stock | Price | Add to cart |
|
Rated current :
25A
Reference : RSR32_25_X
|
25A |
RSR32_25_X |
Available now Stock : 5 |
€84.06 Tax excl. |
|
|
Rated current :
60A
Reference : RSR32_60_X
|
60A |
RSR32_60_X |
Available now Stock : 9 |
€101.97 Tax excl. |
|

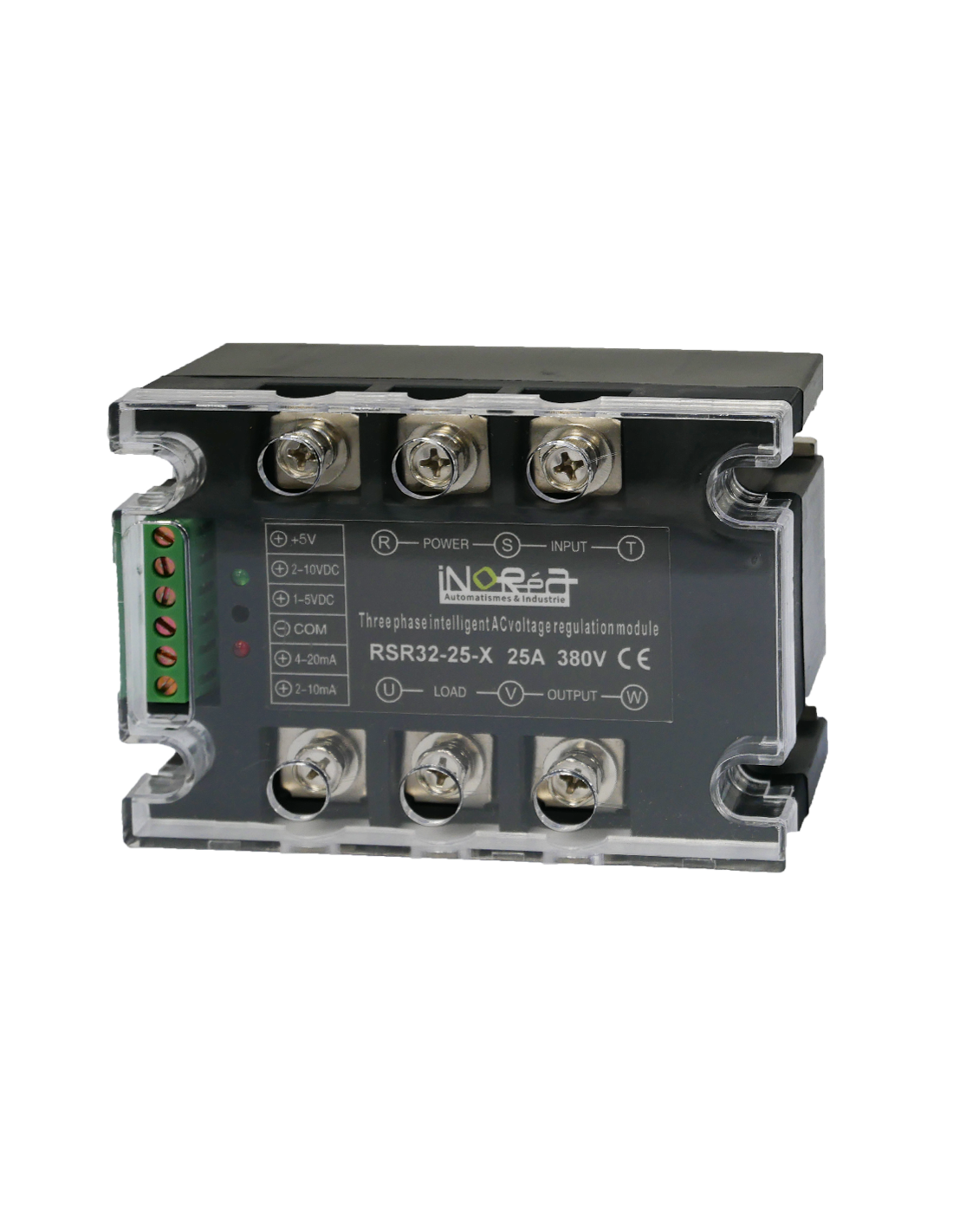

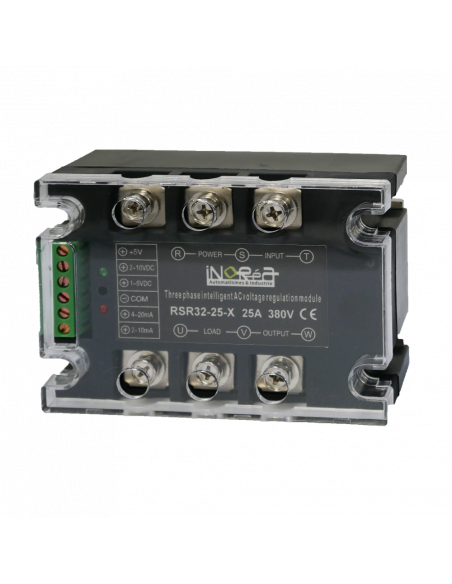

Three-Phase Dimmer 25A and 60A – Precise Voltage Control
The three-phase dimmer operates as a voltage regulator: control via a potentiometer (10 kΩ) or a 1–5 V / 0–10 V / 4–20 mA signal allows the voltage to be adjusted continuously from 0 V to full voltage.
Technical specifications:
-
Number of poles: 3
-
Input voltage: 380 V AC three-phase
-
Control power supply: 12 V DC (10 W)
-
Adjustable angle range: 0–180°
-
Rated current: 25 A or 60 A
-
Operating temperature: -10 °C to 45 °C
-
Control methods: 10 kΩ potentiometer or 1–5 V or 0–10 V or 4–20 mA signal
Warning: Do not use on inductive loads (transformers, motors).
| References | Voltage | Amps | Pole number |
| RSR32_25_X | 380V | 25 A | 3 |
| RSR32_60_X | 380V | 60 A | 3 |
| Technical documentation | CE Certificate |
 |
 |
