Dimmer
Dimmer - pack of 5
Dimmer - pack of 5
Dimmer - pack of 5
Dimmer

Dimmer - pack of 5

Quote request

€114.77 Tax excl.
Pourcentage.png Quantity discounts on the category 5.1 Solid state relays



✔ Between 2 and 4 lots purchased: 10% discount

✔ 5 lots and more purchased: 20% discount


Want to become a distributor of our brand?
 Contact us for more customised discounts

Rated current
Control signal

Rated current 10 A 20 A 25 A 40 A
Control signal control by potentiometer 220-470 k-Ohm - 2w 0-10V 0-10 V 4-20 mA
Combinations Rated current Control signal Reference Stock Price Add to cart

Dimmer - pack of 5

Dimmer - pack of 5

Rated current : 10 A
Control signal : 0-10 V

Reference : RSR22_10_V1_5

Stock : 16

10 A

0-10 V

RSR22_10_V1_5

Available now

Stock : 16

€119.87 Tax excl.


€119.87 Tax excl.

Dimmer - pack of 5

Dimmer - pack of 5

Rated current : 10 A
Control signal : 4-20 mA

Reference : RSR22_10_A_5

Stock : 9

10 A

4-20 mA

RSR22_10_A_5

Available now

Stock : 9

€114.77 Tax excl.


€114.77 Tax excl.

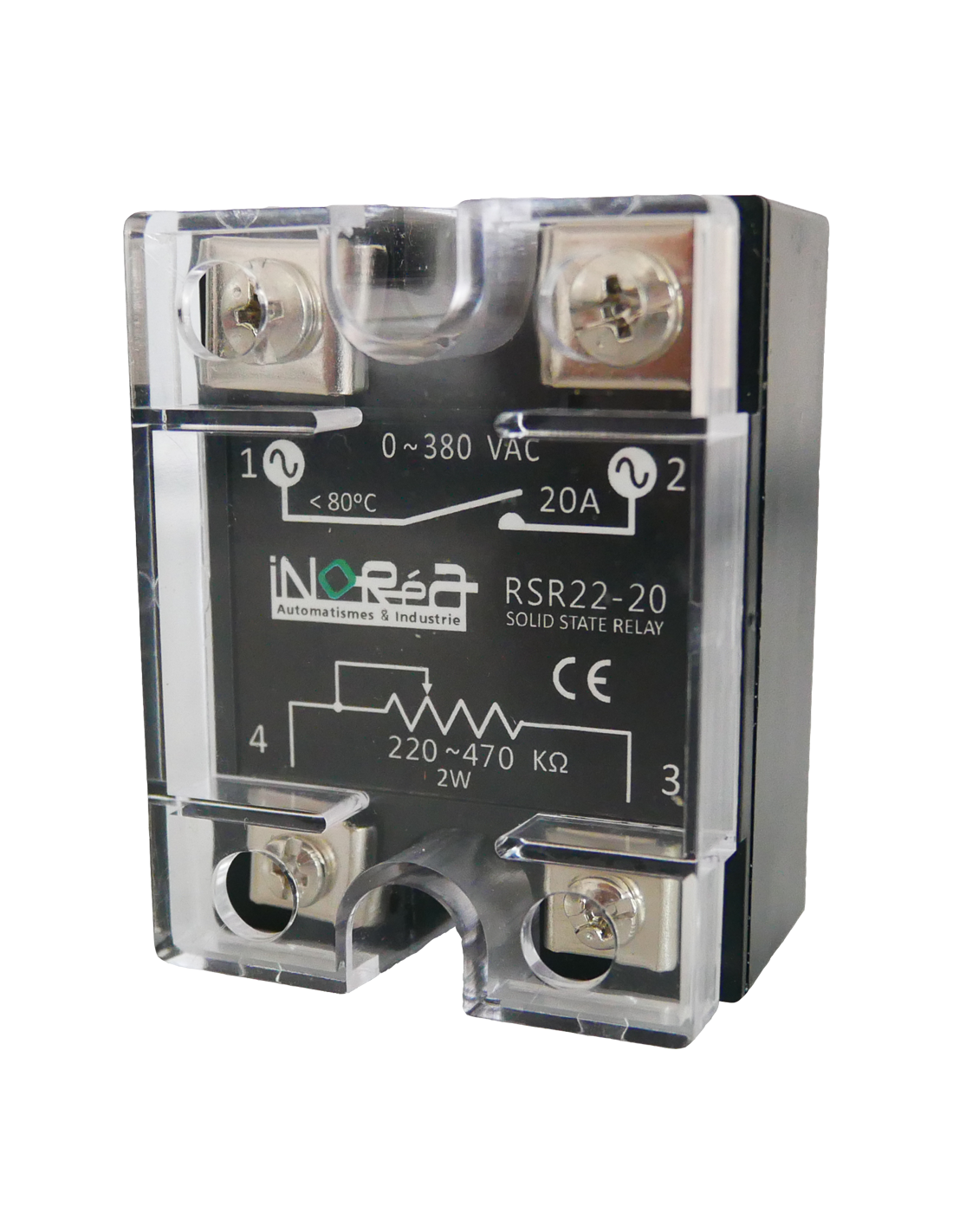

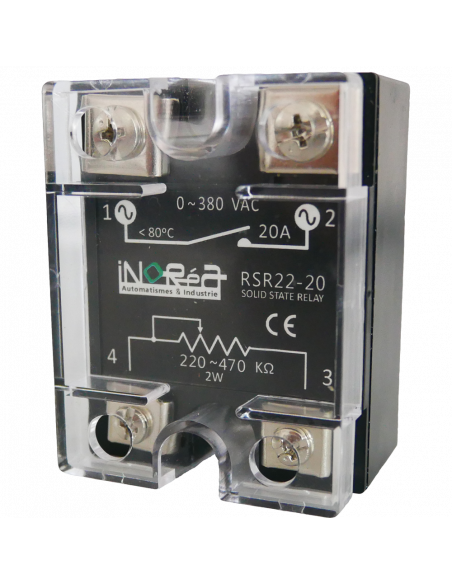

Dimmer - pack of 5

Dimmer - pack of 5

Rated current : 20 A
Control signal : control by potentiometer 220-470 k-Ohm - 2w

Reference : RSR22_20_5

Stock : 1

20 A

control by potentiometer 220-470 k-Ohm - 2w

RSR22_20_5

Available now

Stock : 1

€40.97 Tax excl.


€40.97 Tax excl.

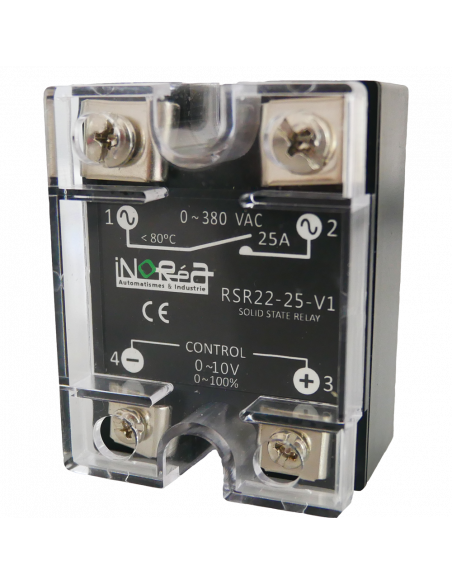

Dimmer - pack of 5

Dimmer - pack of 5

Rated current : 25 A
Control signal : 0-10V

Reference : RSR22_25_V1_5

Stock : 6

25 A

0-10V

RSR22_25_V1_5

Available now

Stock : 6

€107.80 Tax excl.


€107.80 Tax excl.

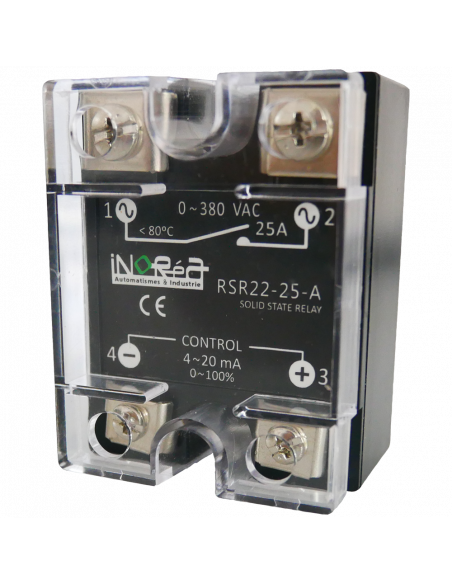

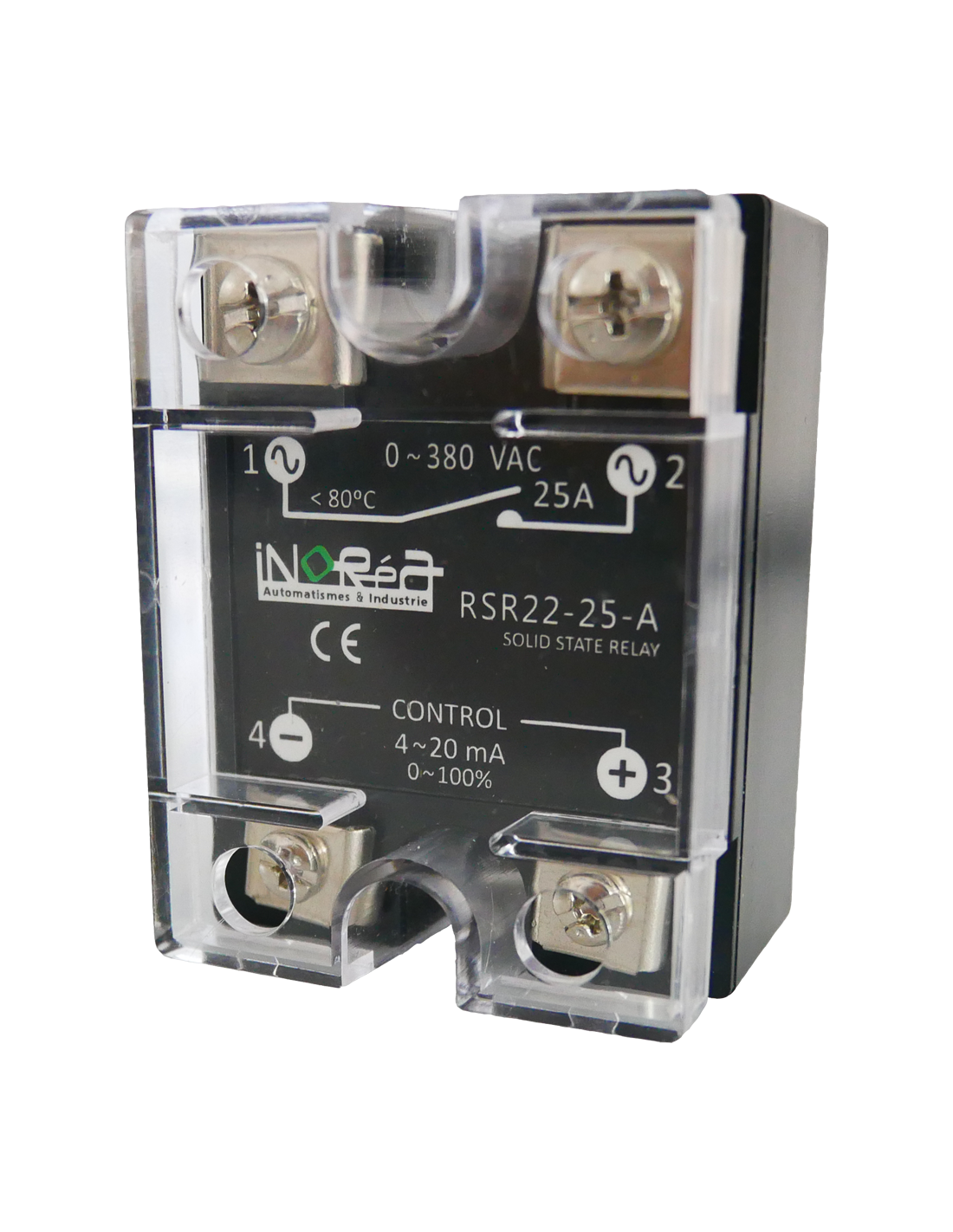

Dimmer - pack of 5

Dimmer - pack of 5

Rated current : 25 A
Control signal : 4-20 mA

Reference : RSR22_25_A_5

Stock : 10

25 A

4-20 mA

RSR22_25_A_5

Available now

Stock : 10

€112.22 Tax excl.


€112.22 Tax excl.

Dimmer - pack of 5

Dimmer - pack of 5

Rated current : 40 A
Control signal : control by potentiometer 220-470 k-Ohm - 2w

Reference : RSR22_40_5

Stock : 5

40 A

control by potentiometer 220-470 k-Ohm - 2w

RSR22_40_5

Available now

Stock : 5

€57.12 Tax excl.


€57.12 Tax excl.

Dimmer - pack of 5

Dimmer - pack of 5

Rated current : 40 A
Control signal : 0-10V

Reference : RSR22_40_V1_5

Stock : 8

40 A

0-10V

RSR22_40_V1_5

Available now

Stock : 8

€126.67 Tax excl.


€126.67 Tax excl.

Dimmer - pack of 5

Dimmer - pack of 5

Rated current : 40 A
Control signal : 4-20 mA

Reference : RSR22_40_A_5

Stock : 9

40 A

4-20 mA

RSR22_40_A_5

Available now

Stock : 9

€119.36 Tax excl.


€119.36 Tax excl.

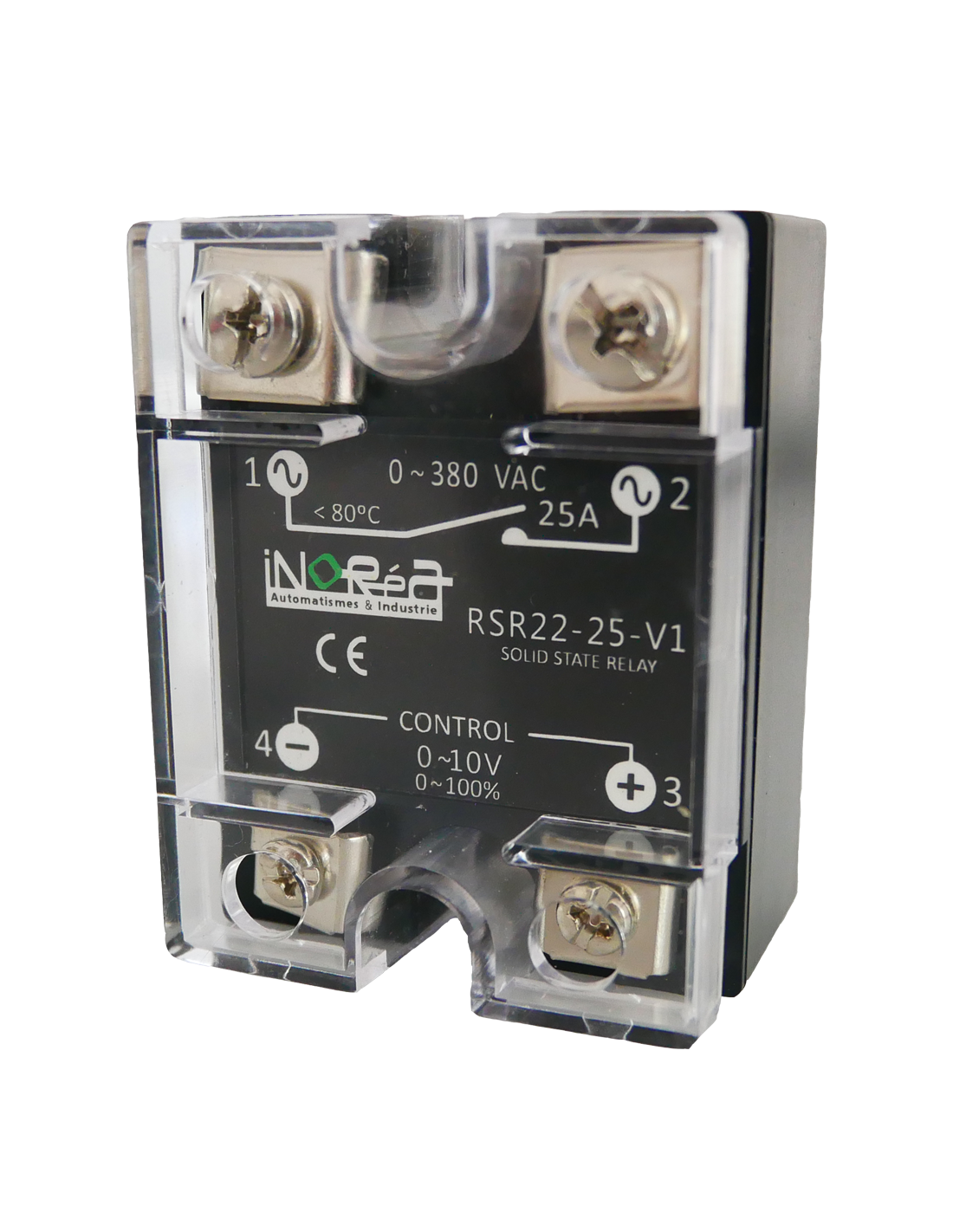

The single phase dimmer performs as a contactor: a voltage application on the potentiometer control drives the transistor with a variable voltage between 0 and 230V.


Technical features

  • CMOS technology
  • Top protection in plastic
  • Isolation voltage: 1000 MΩ / min (500V)
  • Stability of pulse voltage: 2000V, 50Hz
  • Dielectric rigidity 2500VAC / 1 min
  • Leakage current <2mA
  • Switching time <10ms
  • Operating temperature: -5°С to + 65°С, relative humidity: 35 - 85% RH
Radiator sizing is critical for the lifespan of the component. The power dissipation can be calculated from the following formula:
Effective current of the electrical charge (A) x 3.0 W/A.



Warning:
The single phase dimmer should be protected against output overvoltage by a varistor, particularly when using an inductive load.


Reference Pole number Control Output voltage Amps Corresponding radiator
RSR22_20_5 2 by potentiometer 220-470 K Ω 0 to 230VAC 20 A RST_20
RSR22_10_V1_5 2 0-10V 0 to 230VAC 10 A RST_20
RSR22_10_A_5 2 4-20mA 0 to 230VAC 10 A RST_20
RSR22_25_V1_5 2 0-10V 0 to 230VAC 25 A RST_40
RSR22_25_A_5 2 4-20mA 0 to 230VAC 25 A RST_40
RSR22_40_V1_5 2 0-10V 0 to 230VAC 40 A RST_40
RSR22_40_A_5 2 4-20mA 0 to 230VAC 40 A RST_40
RSR22_40_5 2 by potentiometer 220-470 K Ω 0 to 230VAC 40 A RST_40



Technical documentation CE Certificate
document technique pour boutons électriques document technique pour boutons électriques
3760324775448
