Inoréa ventilation box

Our Inoréa ventilation boxes

Inoréa, supplier of electrical and automation components, produces your ventilation boxes via a quote request according to your specifications.

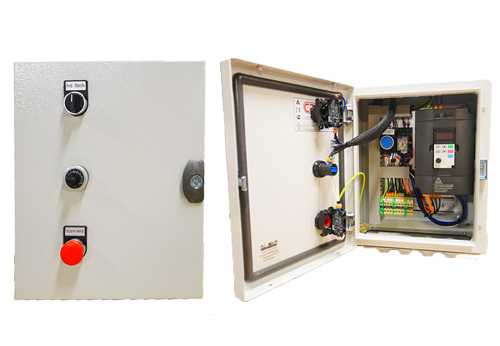

The ventilation box allows to vary the extraction speed of a turret or a kitchen hood. It has an ON/OFF button, a potentiometer to adjust the extraction speed, a smoke ventilation switch which activates the maximum speed of the hood. To deactivate this mode, simply open the box and press the RESET button. The cycle can then be restarted. In the box, two terminals are dedicated to the activation of the gas solenoid valve.

Technical options

 Size of the box in single/three-phase: 30x25x16

 Size of the box in three/three-phase: 30x25x16

 Standard metal cabinet (possibility of a plastic or a steel cabinet on request)

 Power supply via a single or a three-phase source

 Size of the box in single/three-phase: 30x25x16

 Size of the box in three/three-phase: 30x25x16

 Standard metal cabinet (possibility of a plastic or a steel cabinet on request)

 Power supply via a single or a three-phase source

• Size of the box in single/three-phase: 40x30x16

• Size of the box in three/three-phase: 30x25x16


 Standard metal cabinet (possibility of a plastic or a steel cabinet on request)

 Power supply via a single or a three-phase source

• Please contact us for any other power.

Would you like us to make your ventilation box?

Contact our team to discuss your project!

Application of a ventilation box for an extractor hood

VARY THE ROTATION SPEED OF THE MOTOR

The box is equipped with a variable-frequency drive and a potentiometer, which allow the rotation speed of the motor to vary.


SMOKE CONTROL

A red button on the box allows the smoke extraction to be managed. The variable-frequency drive is forced to run until the reset butto is pressed.


COMMISSIONING

Simple variation commissioning: stop/start button on the box.

The advantages of Inoréa

Technical assistance by phone/email
if needed


Telephone: 00.335.57.99.19.22

Email: contact@inorea.com

After-sales service: 0890 710 730 (25 cts/min)

Production of the boxes
in our premises in France


Address: 9 rue du Lugan
33 130 Bègles
FRANCE

Customised production
according to your specifications


Power
Size
Type of cabinet
Type of power supply
