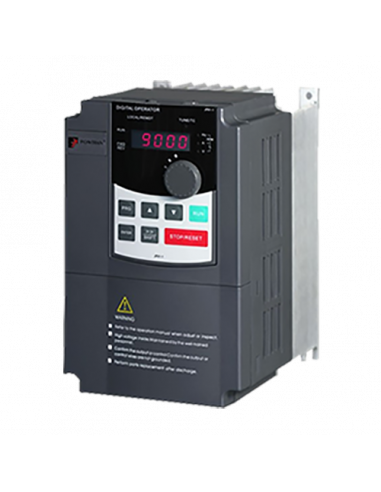

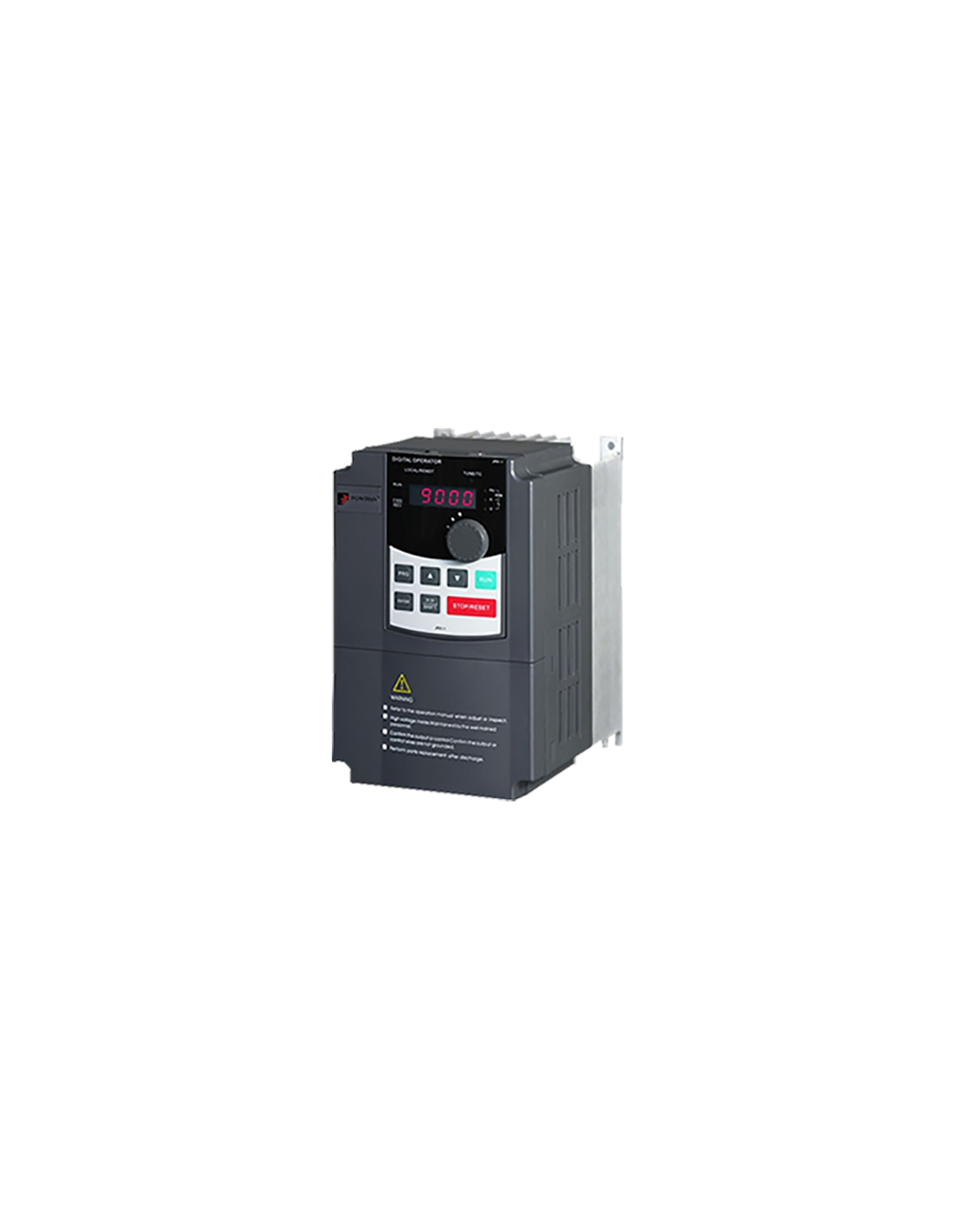

Three phase frequency inverter VFR091
Frequency inverters three-phase to 0.75 to 7.5 Kw for the speed varation of the asynchronous motors.
| Option | with braking without braking |
| Power kW | 0.75 kW 1.5 kW 2.2 kW 4 kW 5.5 kW 7.5 kW |
| Combinations | Option | Power kW | Reference | Stock |
|
Option :
with braking
Reference : VFR-091T4-0K75
|
with braking |
0.75 kW |
VFR-091T4-0K75 |
This product is no longer in stock |
|
Option :
with braking
Reference : VFR-091T4-1K5
|
with braking |
1.5 kW |
VFR-091T4-1K5 |
This product is no longer in stock |
|
Option :
with braking
Reference : VFR-091T4-2K2
|
with braking |
2.2 kW |
VFR-091T4-2K2 |
This product is no longer in stock |
|
Option :
with braking
Reference : VFR-091T4-4K0
|
with braking |
4 kW |
VFR-091T4-4K0 |
This product is no longer in stock |
|
Option :
with braking
Reference : VFR-091T4-5K5
|
with braking |
5.5 kW |
VFR-091T4-5K5 |
This product is no longer in stock |
|
Option :
with braking
Reference : VFR-091T4-7K5
|
with braking |
7.5 kW |
VFR-091T4-7K5 |
This product is no longer in stock |
|
Option :
without braking
Reference : VFR-091T4B-0K75
|
without braking |
0.75 kW |
VFR-091T4B-0K75 |
Available now Stock : 1 |
|
Option :
without braking
Reference : VFR-091T4B-1K5
|
without braking |
1.5 kW |
VFR-091T4B-1K5 |
This product is no longer in stock |
|
Option :
without braking
Reference : VFR-091T4B-2K2
|
without braking |
2.2 kW |
VFR-091T4B-2K2 |
This product is no longer in stock |
|
Option :
without braking
Reference : VFR-091T4B-4K0
|
without braking |
4 kW |
VFR-091T4B-4K0 |
This product is no longer in stock |
|
Option :
without braking
Reference : VFR-091T4B-5K5
|
without braking |
5.5 kW |
VFR-091T4B-5K5 |
This product is no longer in stock |
|
Option :
without braking
Reference : VFR-091T4B-7K5
|
without braking |
7.5 kW |
VFR-091T4B-7K5 |
This product is no longer in stock |
| References | Voltage | Power | In | Dim. (mm) - Weight |
| VFR-091T4-0K75 VFR-091T4B-0K75 |
380V | 0.75kW | 2.1A | 185/120/178.5 - 3kg 70N2 |
| VFR-091T4-1K5 VFR-091T4B-1K5 |
380V | 1.5kW | 3.8A | 185/120/178.5 - 3kg 70N2 |
| VFR-091T4-2K2 VFR-091T4B-2K2 |
380V | 2.2kW | 5.1A | 185/120/178.5 - 4kg 70N2 |
| VFR-091T4-4K0 VFR-091T4B-4K0 |
380V | 4kW | 9A | 220/150/185.5 - 4kg |
| VFR-091T4-5K5 VFR-091T4B-5K5 |
380V | 5.5kW | 13A | 220/150/185.5 - 5kg 70N3 |
| VFR-091T4-7K5 VFR-091T4B-7K5 |
380V | 7.5kW | 17A | 285/180/200 - 7kg 70N4 |
• Power : 0.75kW to 7.5kW
• Power supply: 380-415V (±15%), 50/60Hz (±5%)
• V/F (Automatic compensation of the sliding) ou Vectorial control open-loop ou Vectorial control closed-loop
• Fréquence de sortie 0.00 à 800.00Hz (stabilité ±0.50 Hz)
• Strating-up torque 180% to 0.5 Hz
•Overload capability : 150% during 1 min, 200% during 0.1s
• 6 inputs TOR (0-24V), 3 analog inputs (0-10V, 4-20mA), 2 transistors outputs, 1 relay output, 2 analog outputs
• Integrated transistor of braking and injection of direct current.
• Piloting keyboard, control bornier, communication; MODBUS (RUN, STOP, AV(AVENUE), AR, frequency, emergency shutdown)
• Functioning with 7 segment of speed, PID
| Quick start guide | Complete instructions | Wiring diagram | |
 |
|
|
| Control by external buttons | Multi speed control | Multi speed control | Applications |
|
|
|
|
