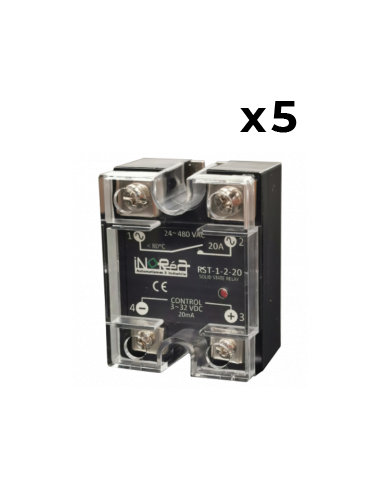

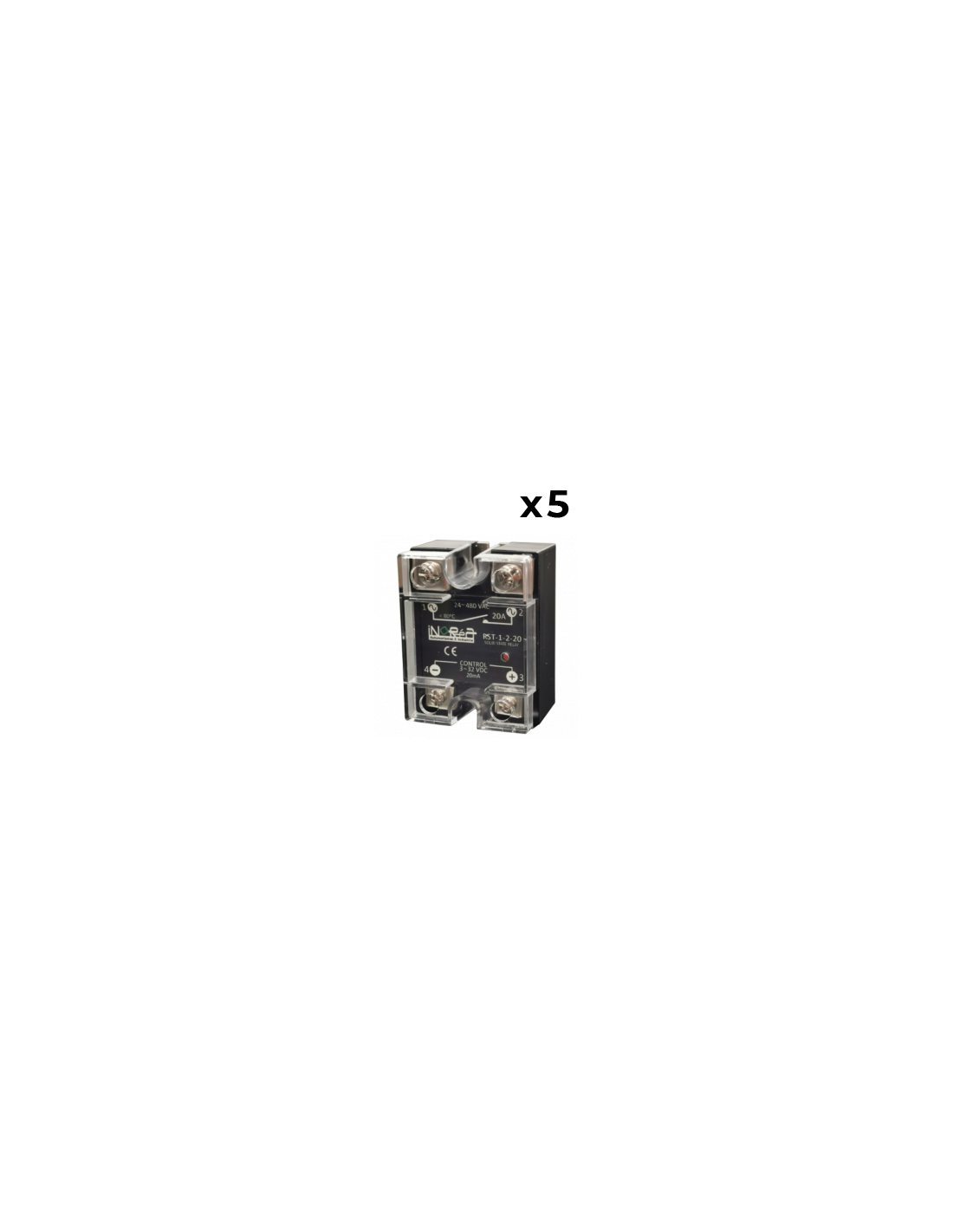

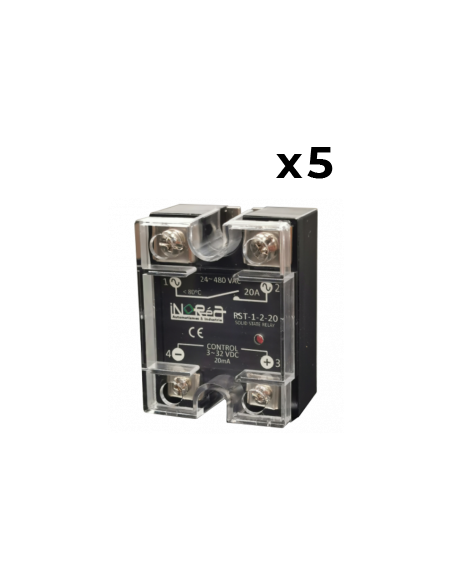

Single phase solid state relay

Single phase solid state relay - pack of 5

Quote request

€46.24 Tax excl.
Pourcentage.png Quantity discounts on the category 5.1 Solid state relays



✔ Between 2 and 4 lots purchased: 10% discount

✔ 5 lots and more purchased: 20% discount


Want to become a distributor of our brand?
 Contact us for more customised discounts

Rated current
Control voltage

Rated current 20A 40A
Control voltage 220 V
Combinations Rated current Control voltage Reference Stock Price Add to cart

Single phase solid state relay - pack of 5

Single phase solid state relay - pack of 5

Rated current : 20A
Control voltage : 220 V

Reference : RST_1_2_20_5

Stock : 13

20A

220 V

RST_1_2_20_5

Available now

Stock : 13

€46.24 Tax excl.


€46.24 Tax excl.

Single phase solid state relay - pack of 5

Single phase solid state relay - pack of 5

Rated current : 40A
Control voltage : 220 V

Reference : RST_1_2_40_5

Stock : 16

40A

220 V

RST_1_2_40_5

Available now

Stock : 16

€59.67 Tax excl.


€59.67 Tax excl.

The solid state relay performs as a contactor: a voltage application (between 2 and 32 VDC) on the control drives the transistor functional and powers the electrical charge.

Technical features

  • CMOS technology
  • Top protection in plastic
  • Isolation voltage: 1000 MΩ / min (500V)
  • Stability of pulse voltage: 2000V, 50Hz
  • Dielectric rigidity 2500VAC / 1 min
  • Leakage current <2mA
  • Switching time <10ms
  • Operating temperature: -5°С to + 65°С, relative humidity: 35 - 85% RH

Radiator sizing is critical for the lifespan of the component. The power dissipation can be calculated from the following formula:

Effective current of the electrical charge (A) x 3.0 W/A.

Warning:
The single phase solid state relay should be protected against output overvoltage by a varistor, particularly when using an inductive load.



Reference Number
of poles
Control voltage Output voltage Maximum
output amps
RST_1_2_20_5 1 3-32VDC 230VAC 20 A
RST_1_2_40_5 1 3-32VDC 230VAC 40 A



Technical
documentation
CE Certificate
pdf.png certificat_CE.png

3760324775363
2022-04-08
